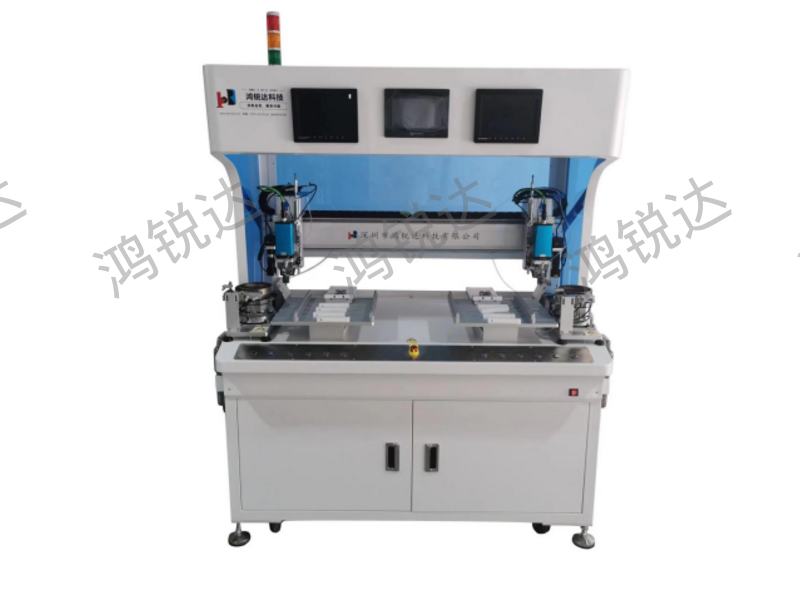

Name: Vertical six-axis automatic screw locking machine
Brand: Honred
SKU: HRD-42

Machine Features
1. The workbench is divided into left and right sections, with both sides able to lock nails simultaneously, and they are independent of each other, do not interfere with each other, and have high locking efficiency.
2. Uses an adjustable fixture suitable for LED modules of various sizes;；
3. Operated with a handle, it is simple to use. After loading on one side is completed, you only need to press the start button for the corresponding side, and the machine can complete the locking action on that side. The machines are arranged side by side, allowing one person to operate multiple machines at the same time, saving labor.。
4. Configure the touchscreen to set and display parameters such as electric screwdriver torque, fastening turns, and screw locking time.；

Technical Specifications
Name	Vertical Six-Axis Adsorption Automatic Screw Locking Machine	Vertical Six-Axis Pneumatic Automatic Screw Locking Machine
Model	HRD-2PLGX6-BZ/SF	HRD-2PLGC6-BZ/SF
Dimensions (Length × Width × Height)	1400mm×1000mm×1750mm	1300mm×1000mm×1750mm
Weight	360Kg	390Kg
Power supply	AC220V,50HZ
Working air pressure	0.55±0.1 MPa
Applicable Screw Specifications	M0.8-M1.7（When changing the screw specifications, the related components need to be replaced.）
Efficiency	1.3~1.8 seconds / 2 nails	1.0-1.3 seconds / 2 nails
Total power	＜1.2KW	＜1.4KW
Control method	Motion control card control, joystick operation, touchscreen
Nail removal method	Adsorptive	Inflatable
Function	1. Nail repair function; 2. Production capacity counting; 3. Can store 1,000 types of products, each product can set 2,000 coordinate points; 4. Alarm query function; 5. Camera alignment function; 6. Application program upgrade function; 7. Coordinate point matrix function; 8. Can set torque, number of turns, and depth lock mode; 9. Single coordinate point nailing function, etc.
Adapt product specifications	1. Maximum range 320mm * 500mm; 2. Customizable models are available for sizes beyond this range

Vertical six-axis automatic screw locking machine

Model: HRD-2PLGC6-BZ/SF
Material: Left XYZ three-axis, Right XYZ three-axis structure
Dimensions: 1300mm×1000mm×1750mm

Honred vertical six-axis automatic screw locking machine locks the left and right workstations independently to multiply throughput and accommodate a wide range of LED modules. The touch screen gives precise control of torque and screw turns, and one operator can run several machines at once. Factory-direct supply with non-standard customization.
