Automatic screw and washer assembly machine — non-standard equipment supplied direct from Honred Technology, Shenzhen, China, founded 2012. Model HRD-BL52; vibratory bowl feeding for screws and washers with vacuum pick-up assembly; overall size 850×700×950 mm, 70 kg. 13 years of non-standard automation experience. Customisation supported.
Hotline: 0755-23170120

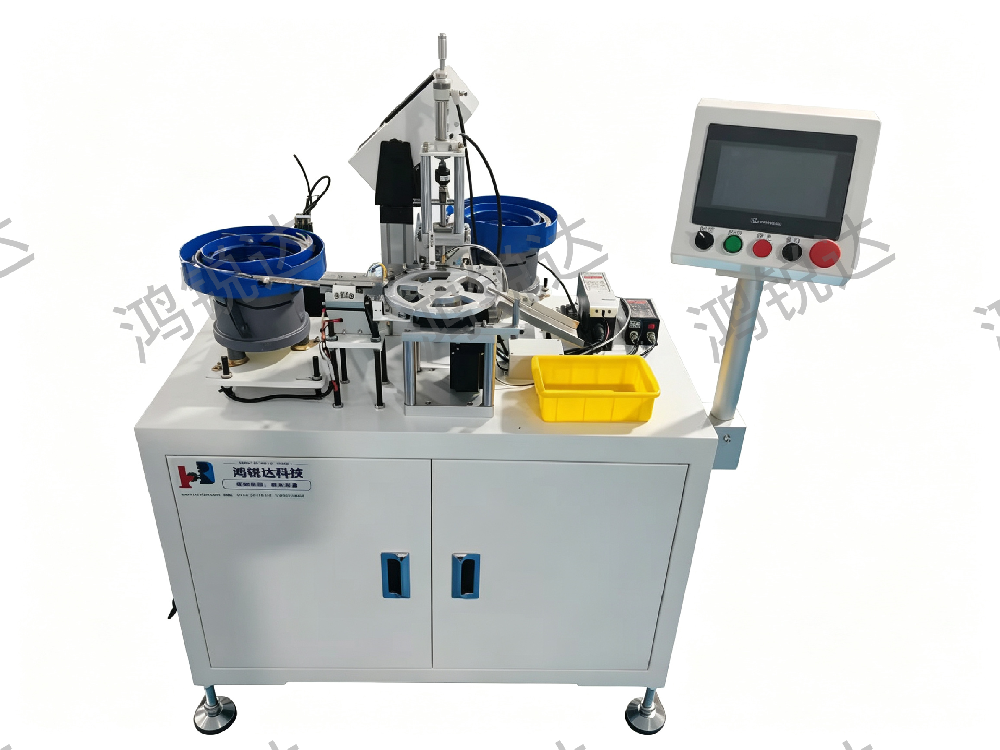

The automatic screw and washer assembly machine (model HRD-BL52) assembles screws and washers automatically: screws are fed from a vibratory bowl and washers from a second vibratory bowl, and the two are joined by a vacuum pick-up mechanism. It replaces manual assembly and improves assembly consistency and efficiency.
1. Vibratory bowl feeding for both screws and washers; stable feeding and less manual loading.
2. Vacuum pick-up assembly with a controlled joining motion, reducing missing or wrongly placed washers.
3. Desktop structure, overall size 850×700×950 mm and about 70 kg; compact footprint, easy to place on a production line.
4. AC220V 50Hz power supply and 0.6 MPa air supply; it can be used in a standard workshop environment.
Suitable for assembly processes in the electronics, home appliance and automotive parts industries that require combined screw and washer feeding, and can be used together with automatic screw driving equipment.
Please provide the screw and washer specifications (diameter, length, thickness) and your target capacity. Honred will confirm the suitability of the vibratory bowl and pick-up mechanism. Non-standard customisation is supported.
