| Technical Specifications | |||

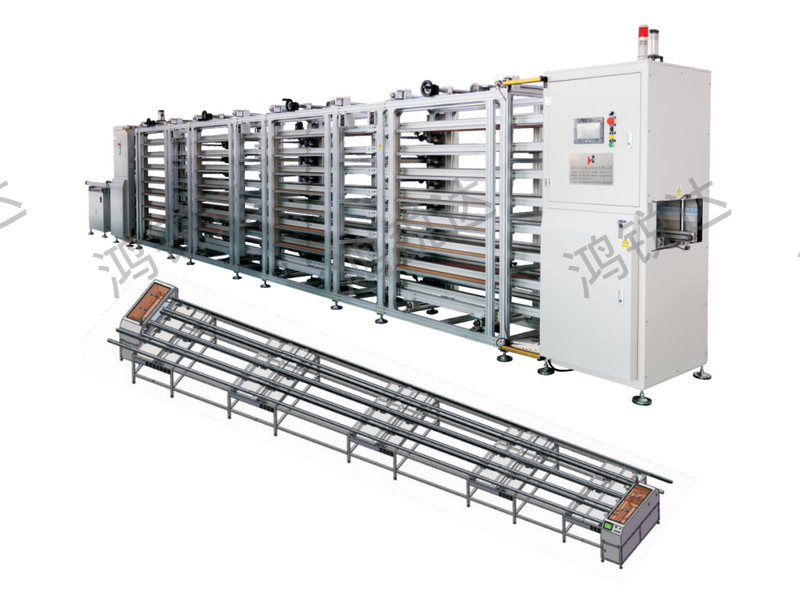

| Name | Module Automatic Drying System | Module Automatic Drying System | Flat drying system |
| Model | HRD-BL310 | HRD-BL410 | HRD-P44/12N |
| Dimensions (Length × Width × Height) | 7415mmx770mmx2100mm | 9415mmx770mmx2100mm | 20000mmx2160mmx1300mm |
| Control method | Touchscreen | Touch Screen Speed Controller | Touch Screen Speed Controller |
| Weight | about1470Kg | about1850Kg | about2150Kg |
| Adjustment method | 6-meter 10-layer, overall automatic width adjustment | 8-meter 10-layer, overall automatic width adjustment | Adjust width for 1 group 3 columns |
| Adjustment range | 150-330mm / 150-520mm | ||
| Power supply | AC220V，50HZ | ||
| 0.55±0.1 MPa | |||
| Transfer efficiency | 500 sheets/hour | 500 sheets/hour | 400 sheets/hour |
| Total length when dried | 60m (standard, can also be custom-made) | 80m (standard, can also be custom-made) | 60m (standard, can also be custom-made) |
| Total power | <3.3KW | <4.5KW | <2.73KW |
| Transmission Method | Servo motor transfer Single-side roller chain conveyor | Servo motor transfer Single-side roller chain conveyor | Servo motor transfer Single-side roller chain conveyor |
| Function | 1. Automatic module pick-and-place function; 2. Function for transferring multiple or single modules; 3. Self-service drying time setting function; 4. Anti-pinch board and hand protection function; 5. Power-off and pause memory function; 6. Power-off brake protection function; 7. Production capacity memory function; 8. Ability to disable individual drying layers; 9. Manual confirmation of drying layer pick-and-place function; 10. Convenient real-time inspection of each layer's drying and glue flow condition (vertical inspection height not exceeding 1.7 meters); 11. Alarm query function | ||
| Suitable range | Any outdoor module, with maximum dimensions of 320*500mm | ||
Name Module Automatic Drying System Module Automatic Adjustable Drying System Flat Drying System Model HRD-BL310 HRD-BL410 HRD-P44/12N Dimensions (L×W×H) 7415mm x 770mm x 2100mm 9415mm x 770mm x 2100mm 20000mm x 2160mm x 1300mm Control Mode Touch Screen Touch Screen + Speed Controller Touch Screen + Speed Controller Weight Approx. 1470Kg Approx. 1850Kg Approx. 2150Kg Adjustment Mode 6m 10-layer Manual Adjustment Width 8m 10-layer Overall Automatic Adjustment
