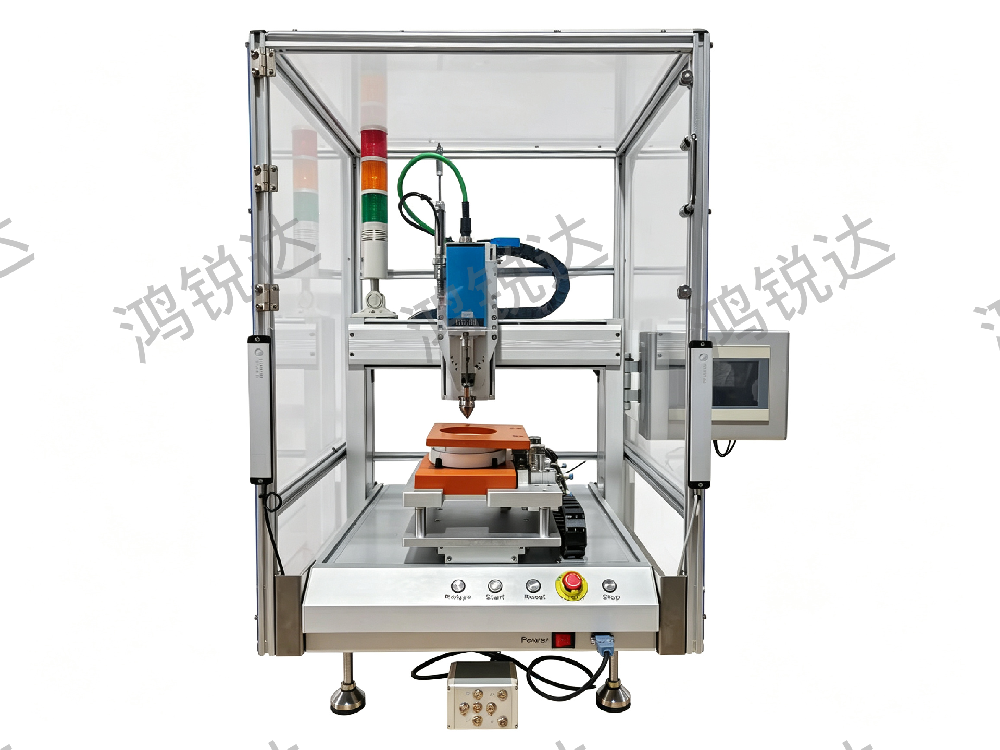

Compact desktop three-axis screw machine with handheld-controller programming, a servo screwdriver and a choice of blow-feed or vacuum-pick models. Manufactured by Honred Technology, Shenzhen, China (founded 2012). Model HRD-BL07; screw range M0.8-M4.0, workpiece up to 250×250 mm, machine accuracy ±0.03 mm.
Hotline: 0755-23170120
1. Single head, single station with handheld-controller programming; up to 1,000 programs can be stored and a single program supports at least 2,000 programming points.
2. Equipped with a servo screwdriver; multi-stage torque and speed can be set for more precise fastening.
3. Both vacuum-pick and blow-feed models are available; the blow-feed model can be programmed for combined tightening and loosening, so screws can be driven and removed.
4. An external touchscreen is provided for setting torque and other parameters.
| Specification | Value |
| Screw range | M0.8-M4.0 |
| Workpiece size | 250×250 mm (customisable) |
| Fastening rate | 0.9-1.3 s per screw (blow-feed); 1.3-1.8 s per screw (vacuum-pick) |
| Machine accuracy | ±0.03 mm |
| Control method | Motion control card + handheld controller |
