Machine Features
1.The workspace is divided into left and right parts, feeding materials to the back end via a conveyor belt, then discharging them onto the production line. Two electric screwdrivers are used simultaneously for front and rear fastening, achieving high fastening efficiency.；
2. Uses a clamping lifting unit, suitable for LED modules of various sizes；
3. The width of the conveyor track can be automatically adjusted；
4. Camera-assisted point alignment, high efficiency；
5. Can lock two boards at the same time, or lock one large board together；
6. Can be connected in series or parallel layout, flexible and versatile。
| Technical Specifications | ||

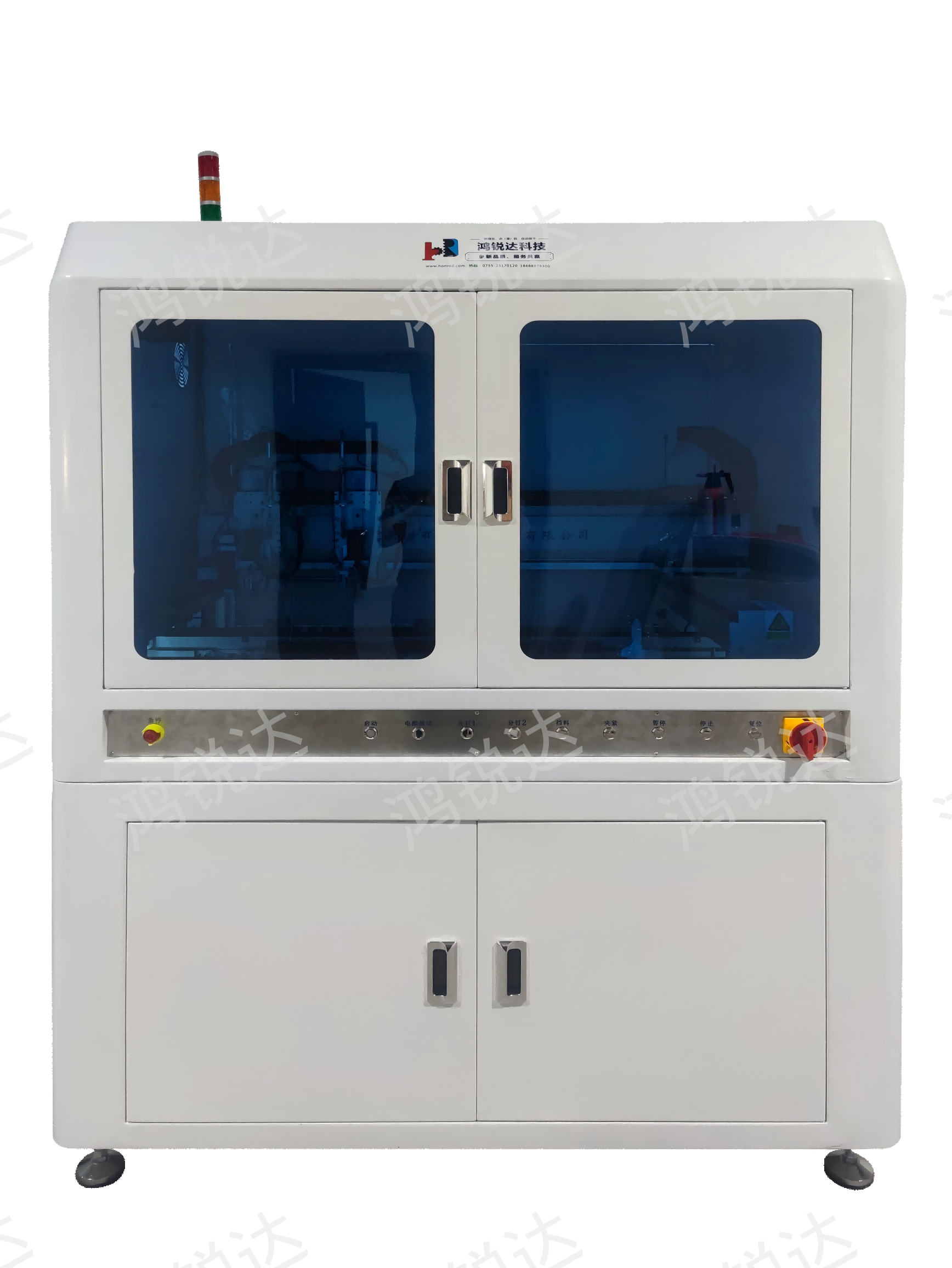

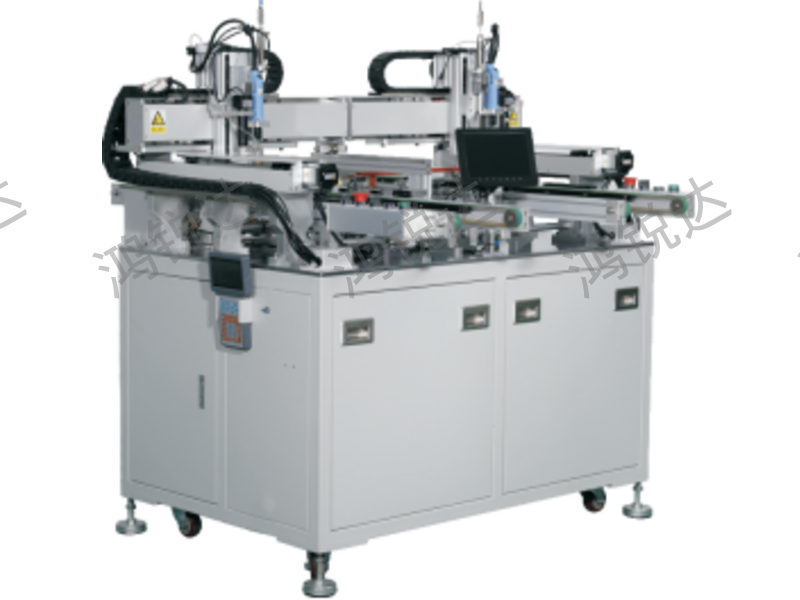

| Name | Online air-blowing automatic screw machine (2 batches, left and right) | Online blow-type automatic screw locking machine (two batches: front and back) |
| Model | HRD-2LXC6-C/ZXS | HRD-2LLMC5-B/ZXS |
| Dimensions (Length × Width × Height) | 1330mm×1450mm×1500mm | 1500mm×1100mm×1750mm |
| Weight | 420Kg | 350Kg |
| Power supply | AC220V，50HZ | |
| Working air pressure | 0.55±0.1 MPa | |
| Applicable screw specifications | M1.0-M2.0（When changing the screw specification, the relevant parts need to be replaced) M1.0-M2.0 (when changing the screw specification, the relevant parts need to be replaced)） | |
| Efficiency | 1.1-1.5 seconds / 2 nails | 1.1-1.5 seconds / 2 nails |
| Total power | ＜2.3KW | ＜1.5KW |
| Nail removal method | Inflatable | |
| Function | 1. Missing nail detection; 2. Production counting; 3. USB import and storage of coordinate files function, can store 20 types of products, each product can set 200 coordinate points; 4. Alarm record query function; 5. Pause memory function, etc. | |
| Suitable range | 1. Maximum range 320mm * 500mm; 2. Customizable models are available for sizes beyond this range | |
Honred online automatic screw locking machine (batch 2) uses two synchronized electric screwdrivers with camera-assisted positioning, supporting left/right or front/rear layouts to lock two boards at once or a single large board. Automatic rail-width adjustment fits many LED module types. Factory-direct supply with non-standard customization.
