Equipment Description

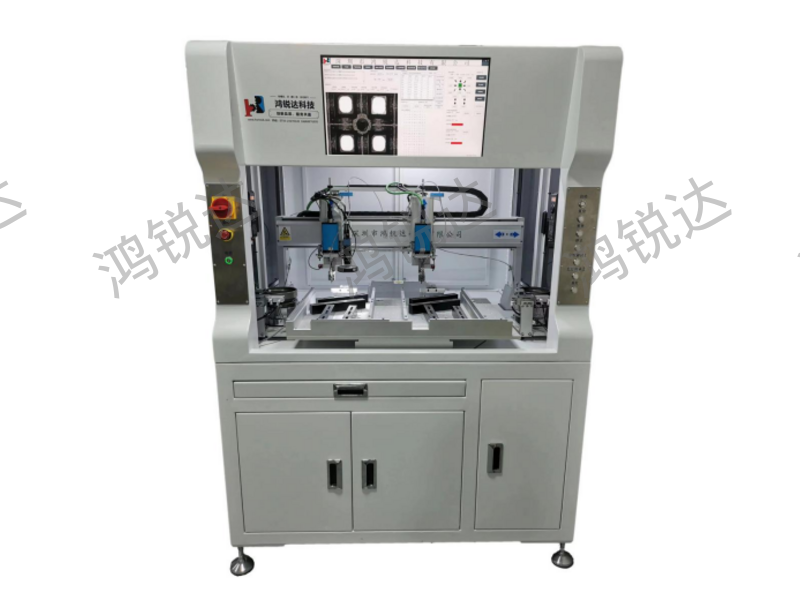

The vertical four-axis adsorption vision screw machine adds CCD vision positioning to a four-axis motion platform. It first photographs the workpiece to recognise the Mark points or fastening positions, then drives the fastening mechanism to pick and drive screws point by point. It is suitable for workpieces with many fastening points and high positioning accuracy requirements.

Features

1. CCD vision positioning compensates for workpiece placement deviation in the fixture.

2. Four-axis motion; fastening coordinates and sequence are set in the program, with support for multiple recipes.

3. Adsorption type screw pick-up, suitable for special specifications or screws that are difficult to feed by blowing.

4. Stroke, fixtures and feeding solution can be customised, and the machine can be integrated into a production line.

Applications

Suitable for precision assembly in 3C electronics and automotive electronics, such as automatic screw fastening of mobile phone and tablet structural parts, modules and housings.

Selection & Ordering

Please provide the workpiece and fastening point drawings, screw specification, accuracy and capacity requirements. Honred will propose a vision solution and recommend the machine model. Non-standard customisation is supported.
