Equipment Description

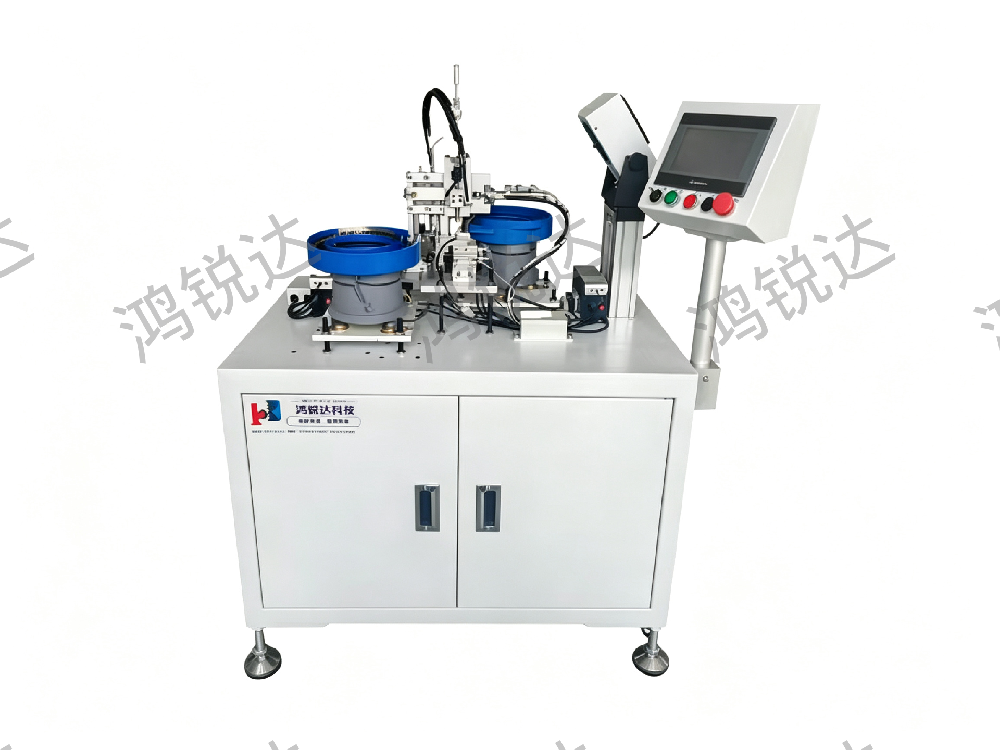

The screw and washer fitting machine (model HRD-BL52) automatically fits washers onto screws: screws are fed from a vibratory bowl and washers from a second vibratory bowl, and a vacuum pick-up mechanism completes the fitting. It replaces manual assembling and improves assembly consistency and efficiency.

Machine Features

1. Vibratory bowl feeding for both screws and washers; stable feeding and less manual loading.

2. Vacuum pick-up fitting with a controlled action, reducing missing or wrongly placed washers. One pick-up and one press make the motion simple and reliable.

3. Compact machine frame, overall size 850×700×950 mm and about 70 kg; small footprint and easy to place on a production line.

4. AC220V 50Hz power supply and 0.6 MPa air supply; it can be used in a standard workshop environment.

Applications

Suitable for assembly processes in the electronics, home appliance and automotive parts industries that require combined screw and washer feeding, and can be used together with automatic screw driving equipment.

Selection & Ordering

Please provide the screw and washer specifications (diameter, length, thickness) and your target capacity. Honred will confirm the suitability of the vibratory bowl and pick-up mechanism. Non-standard customisation is supported.
