1. Dual-station design: soldering on one side while assembling/disassembling products on the other.
2. CCD vision assistance enables multiple functions including mark point positioning, solder joint photography, and post-soldering inspection.
3. It can be connected to the MES system and supports barcode scanning, with soldering data automatically saved.
4. Multi-level permission settings for convenient production organization and management, with independent passwords for each level of permission.
5. If the post-solder inspection function is optionally configured, it can detect defect patterns such as insufficient solder, excess solder, solder bridging, and missing solder at solder joints, and provide OK/NG output.
| Technical Specifications | Parameters |
| Suitable for product sizes | 300×300×50mm |
| Soldering efficiency | 0.5-2.5s/point |
| Solder wire range | 0.3-1.6mm |
| Soldering temperature | 0-450°C intelligent control |
| Positioning accuracy | ±0.02mm |
| Equipment power | 2kw |

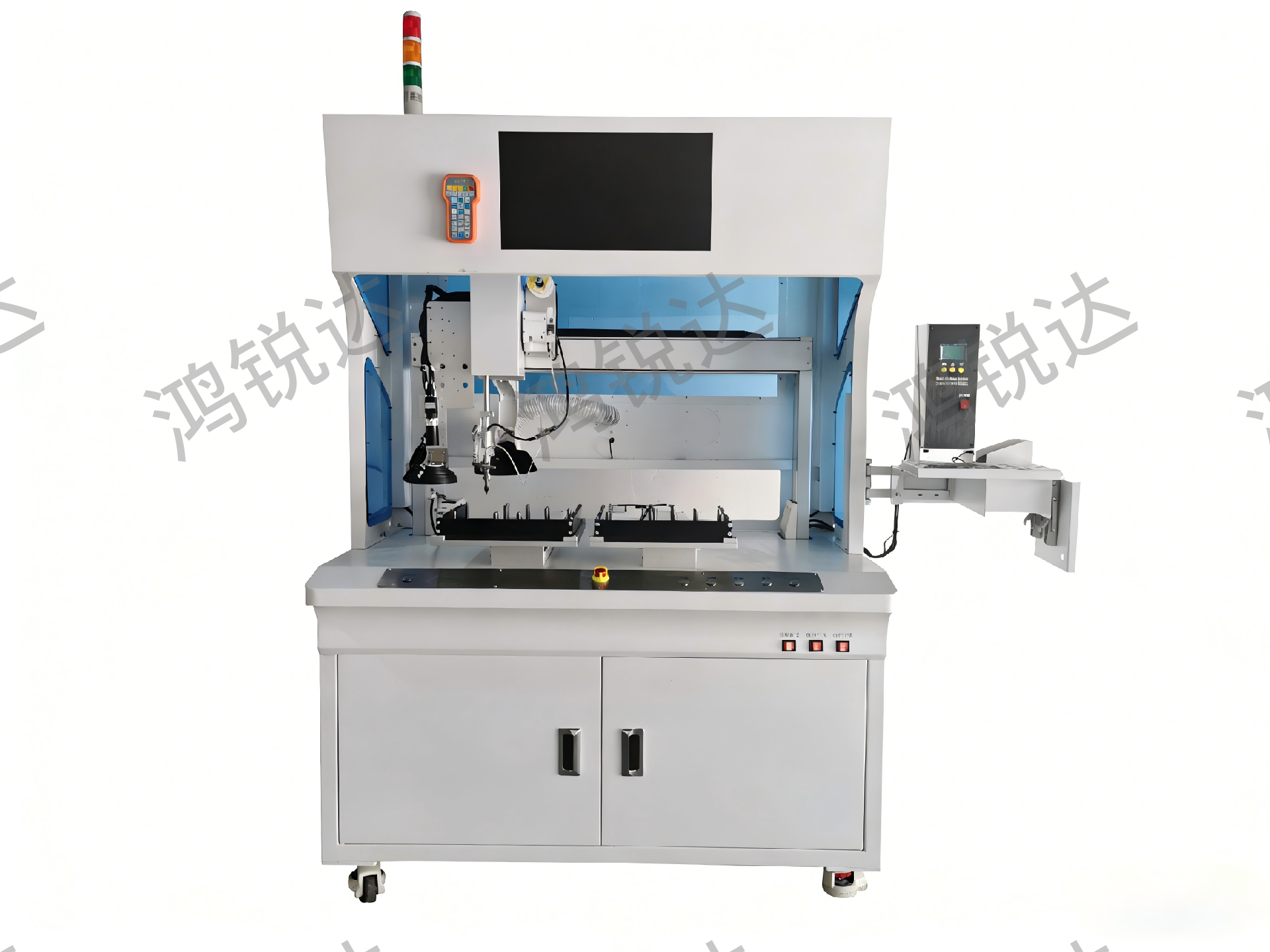

Vertical Dual-Station Vision Soldering Machine — Soldering Machines manufactured by Honred Technology (Shenzhen, China). OEM/ODM customization and production-line integration supported.
