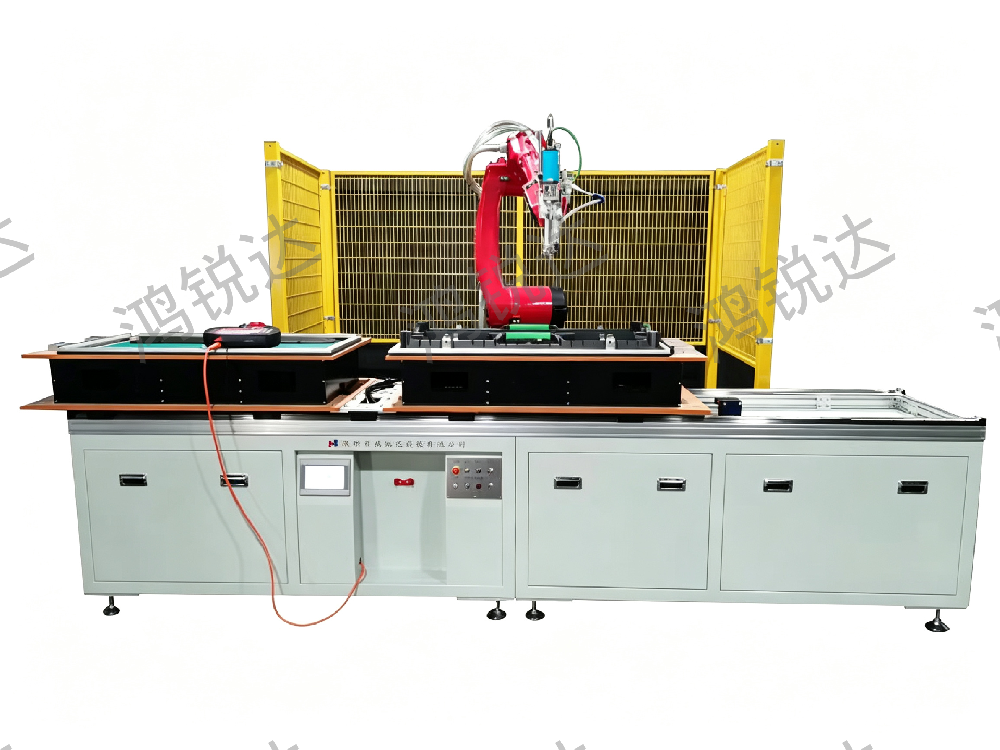

Robotic arm cabinet screw fastening machine — a six-axis robot arm with an external blow-and-pick fastening unit, used for fastening LED display cabinets. Manufactured by Honred Technology, Shenzhen, China (founded 2012). Model HRD-BL17/J; dual-fixture two-station design with handheld programming, for cabinets up to 1000×1000 mm.
Hotline: 0755-23170120
1. Dual-fixture, two-station design: while one fixture is fastening, the other fixture is used for assembly work.
2. A six-axis robot arm carries an external blow-and-pick fastening unit. The machine is equipped with one screw feeder using blow feeding and vacuum-pick fastening, which avoids the inefficiency of long-travel repeated screw pick-up.
3. Handheld-controller programming and a long-reach robot arm, suitable for cabinets of various sizes.
| Specification | Value |
| Screw type | M3 / M4 combination screws |
| Feeding method | Blow feeding from screw feeder |
| Positioning accuracy | ±0.05 mm |
| Control method | Motion control card + handheld controller |
| Fastening rate | 3 s per screw on average |
| Cabinet size (max.) | 1000×1000 mm |
