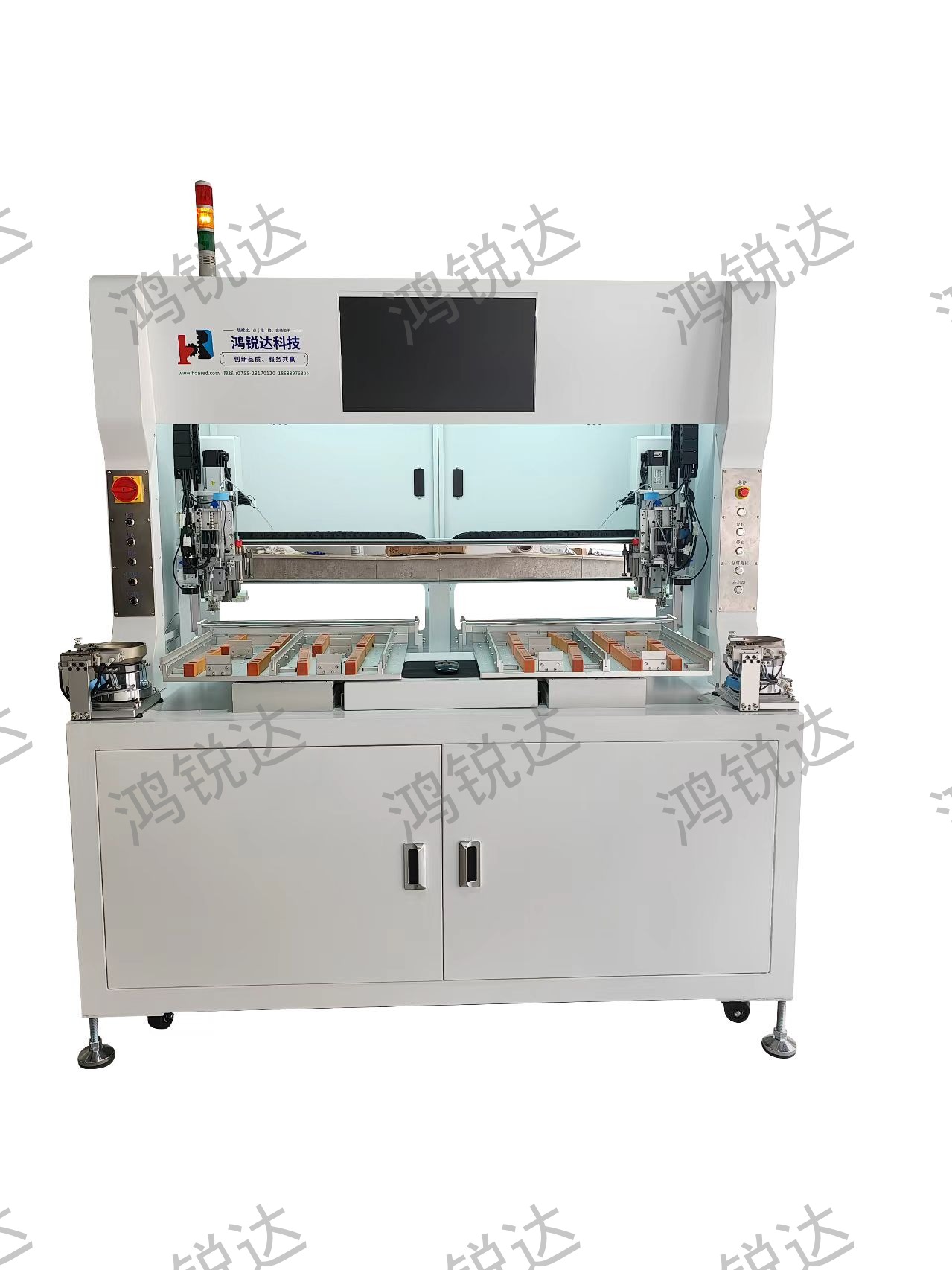

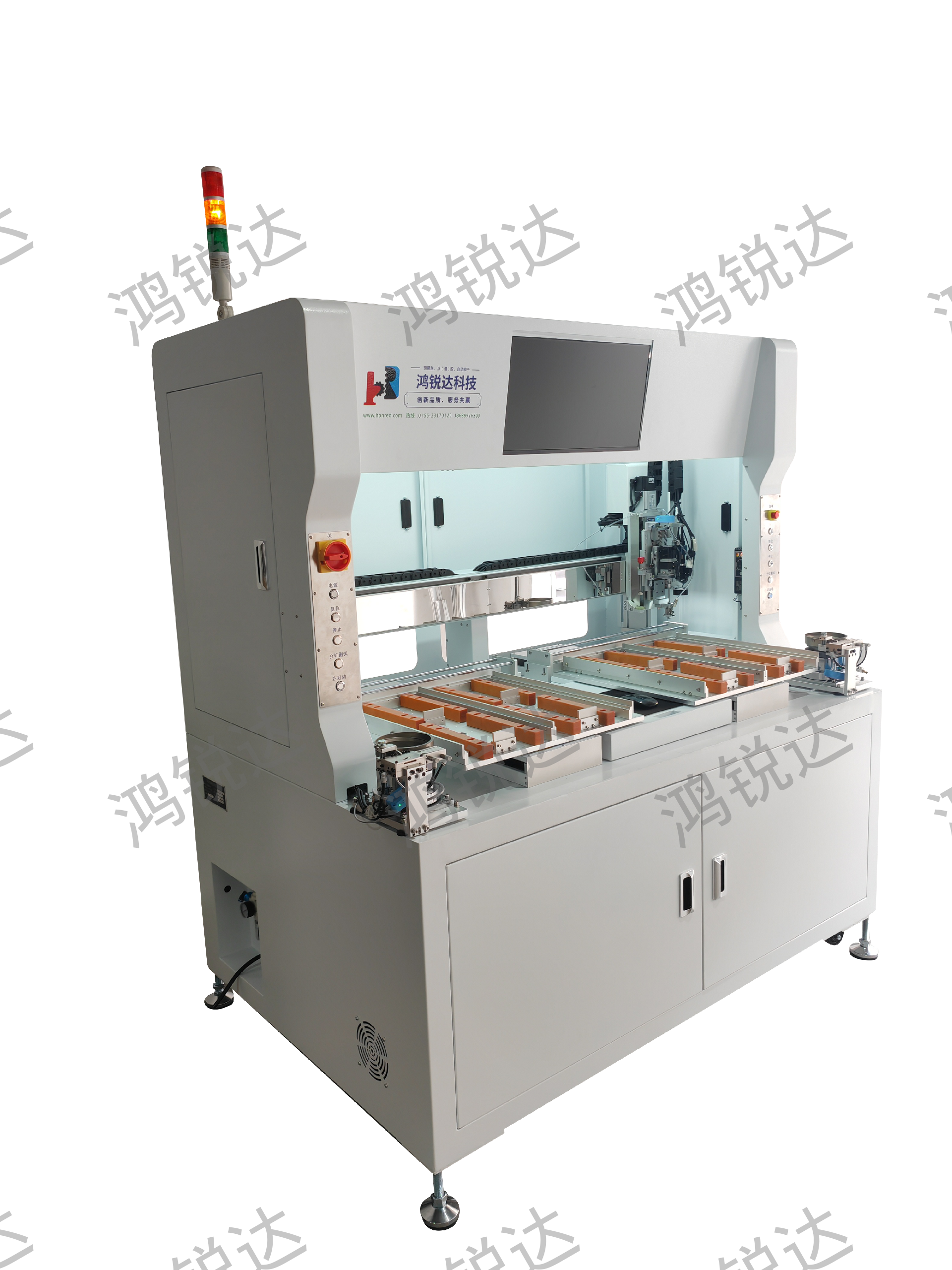

Name: Vertical Six-Axis High-Speed Screw Machine
Brand: Honred
SKU: HRD-107

Machine Features

1. A large vertical six-axis mechanism driven by full servo motors and ball screws, with dual heads and dual stations. The two sides are independent and do not affect each other.

2. The two sides can fasten different products using different screw specifications.

3. Up to four 256×256 mm modules can be placed on one side. With the large fixture design, a single operator can run two machines.

4. Equipped with a servo screwdriver and a magnetic linear scale, supporting multiple fastening modes: torque mode, time mode and depth mode, freely switchable.

5. Both sides are equipped with precision vibratory bowl feeders. Screw changeover only requires replacing 3-4 parts and can be completed within 15 minutes.

6. CCD vision supports Mark point positioning by image capture, with modes such as shoot-then-fasten and fasten-while-shooting. An automatic calibration function has also been added: the camera captures images and calculates hole coordinates automatically, which greatly simplifies operation, especially when changing products.

7. Comprehensive data logging: the fastening torque, fastening time, OK/NG result and depth value of every screw are saved and can be reviewed at any time.

Technical Specifications

Specification	Value
Workpiece size (max.)	500×500 mm
Fastening rate	0.8-1.3 s per 2 screws
Screw specification	M0.6-M2.0 (customisable)
Travel speed	Max. 1000 mm/s
Machine accuracy	±0.02 mm
CCD resolution	5 MP

Vertical Six-Axis High-Speed Screw Machine

Model: HRD-BL02/CS (500)
Material: Vertical six-axis structure, dual XYZ, dual head dual station, dual CCD
Dimensions: 1700×1150×1850 mm, 600 kg
Voltage: AC220V 50Hz / 0.6MPa

Vertical Six-Axis High-Speed Screw Machine — a large vertical six-axis mechanism (dual XYZ, dual head dual station) with the two sides operating independently and a dual CCD vision system. Model HRD-BL02/CS (500); workpieces up to 500×500 mm, fastening rate 0.8-1.3 s per 2 screws, accuracy ±0.02 mm, 5 MP CCD with automatic Mark point calibration. Manufactured by Honred Technology, Shenzhen, China.
