  • Machine Features
    1
    The workbench is divided into left and right parts. Both sides are fed from the front end, conveyed to the rear end by a conveyor belt, and then discharged onto the production line. Four electric screwdrivers are used simultaneously for fastening, resulting in high fastening efficiency.;
    2. Using an adjustable fixture, suitable for modules of various sizes;
    3
    . Control buttons are set on both the left and right sides. After loading is completed, press the corresponding side's start button to complete the locking operation on that side. The locking on both sides does not interfere with each other, making it highly operable.;
    4
    . The control section uses a motion control card and a hand-held controller structure, making it simple to operate and stable in performance.。

    Dimensions (Length × Width × Height)
    Technical Specifications
    NameOnline Automatic Screw Locking Machine (Front and Rear 4 Batches)
    ModelHRD-4LLMC8-B/ZXS
    Electric screwdriver distribution methodFront and back juxtaposition
    1500mm*1600mm*1815mm
    Weight460Kg
    Power supplyAC220V,50HZ
    Working air pressure0.55±0.1 MPa
    Applicable Screw SpecificationsM1.0-M2.0(When changing the screw specifications, the related components need to be replaced.)
    Efficiency1.4-1.6 seconds/4 screws
    Total power<3.5KW
    Nail removal methodBlow-off type
    Function1. Missed nail detection; 2. Production capacity counting function; 3. USB import and storage of coordinate file function, can store 20 types of products, each product can set 200 coordinate points; 4. Alarm record query function; 5. Pause memory function, etc.
    Applicable range of functions1. Maximum range 320mm*320mm; 2. Customizable models available for sizes beyond this range

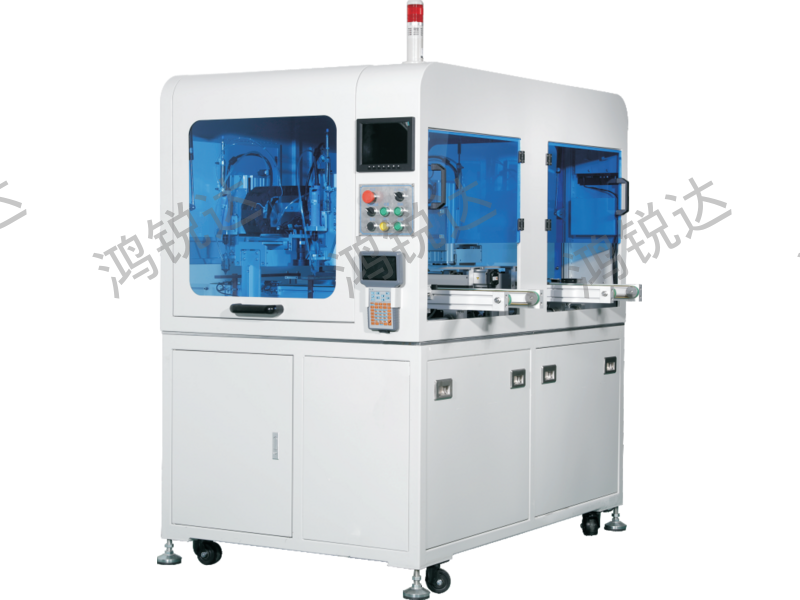

Online Automatic Screw Locking Machine (Batch of 4)

  • Model: HRD-4LLMC8-B/ZXS
  • Dimensions: 1500mm*1600mm*1815mm

Honred online automatic screw locking machine (batch of 4) drives four electric screwdrivers at the same time for high throughput, with adjustable fixtures that fit a variety of module sizes. The left and right stations work independently without interference. Factory-direct supply with non-standard customization.
