Machine Features
1、The workbench is divided into left and right parts. After the module on one side is locked in place, the module on the other side begins to be locked. At this time, the module that has been locked can be removed and a new module can be put in.；
2、Using an adjustable fixture, suitable for LED modules of various sizes；
3、Operated using a handle, the operation is simple. After feeding on one side is completed, you only need to press the start button for the corresponding side, and the machine can complete the locking action on that side. Machines are arranged side by side, allowing one person to operate multiple machines simultaneously, saving labor.。
4.、Configure the touchscreen to set and display parameters such as electric screwdriver torque, fastening turns, and screw locking time.；
| Technical Specifications | ||

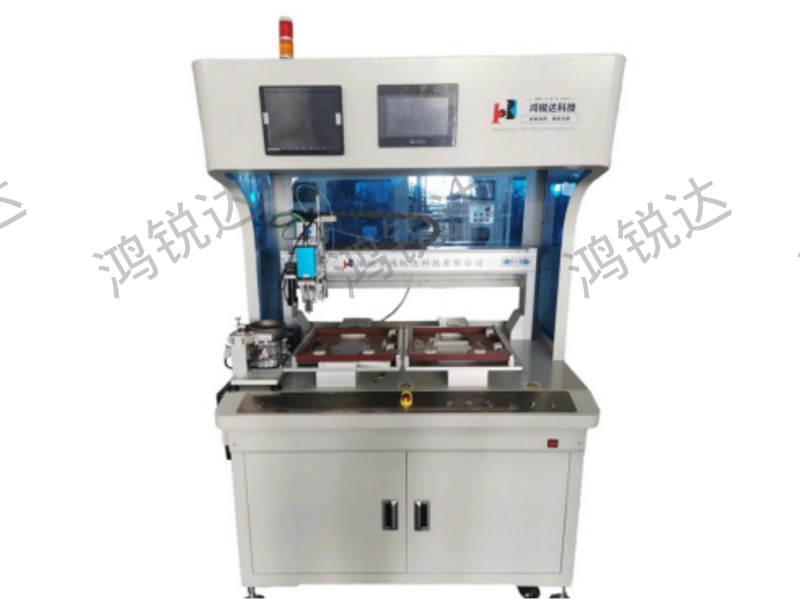

| Name | Vertical Four-Axis Adsorption Automatic Screw Locking Machine | Vertical Four-Axis Pneumatic Automatic Screw Locking Machine |
| Model | HRD-1PLGX4-BZ/SF | HRD-1PLGC4-BZ/SF |
| Dimensions (Length × Width × Height) | 1300mm×1300mm×1750mm | 1200mm×1300mm×1750mm |
| Weight | 300Kg | 320Kg |
| Power supply | AC220V，50HZ | |
| Working air pressure | 0.55±0.1 MPa | |
| Applicable screw specifications | M0.8-M1.7（When changing the screw specifications, the related components need to be replaced.） | |
| Efficiency | 1.3~1.8seconds per nail | 1.0-1.3seconds per nail |
| Total power | ＜1KW | |
| Control method | Motion control card control, joystick operation, touchscreen | |
| Nail removal method | Adsorptive | Inflatable |
| Suitable range | 1. Nail repairing function; 2. Production capacity counting; 3. Can store 1,000 types of products, each product can set 2,000 coordinate points; 4. Alarm query function; 5. Pause memory function; 6. Application program upgrade function; 7. Coordinate point matrix function; 8. Torque, number of turns, and depth lock mode can be set; 9. Single coordinate point nailing function, etc. | |
| Suitable range | 1. Maximum range 320mm * 500mm; 2. Customizable models are available for sizes beyond this range | |
