Machine Features
1. The workbench is divided into left and right sections, with both sides able to lock nails simultaneously, and they are independent of each other, do not interfere with each other, and have high locking efficiency.
2. Uses an adjustable fixture suitable for LED modules of various sizes;；
3. Operated with a handle, it is simple to use. After loading on one side is completed, you only need to press the start button for the corresponding side, and the machine can complete the locking action on that side. The machines are arranged side by side, allowing one person to operate multiple machines at the same time, saving labor.。
4. Configure the touchscreen to set and display parameters such as electric screwdriver torque, fastening turns, and screw locking time.；
| Technical Specifications | ||

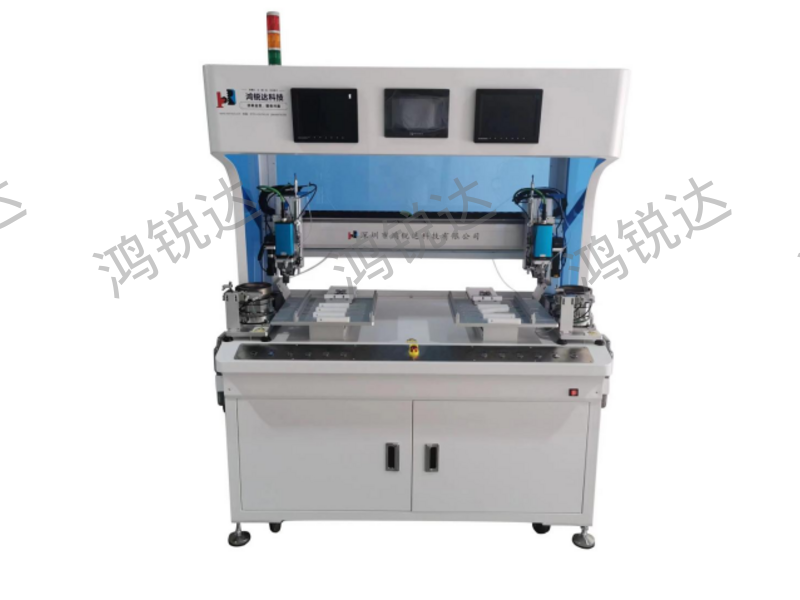

| Name | Vertical Six-Axis Adsorption Automatic Screw Locking Machine | Vertical Six-Axis Pneumatic Automatic Screw Locking Machine |
| Model | HRD-2PLGX6-BZ/SF | HRD-2PLGC6-BZ/SF |
| Dimensions (Length × Width × Height) | 1400mm×1000mm×1750mm | 1300mm×1000mm×1750mm |
| Weight | 360Kg | 390Kg |
| Power supply | AC220V,50HZ | |
| Working air pressure | 0.55±0.1 MPa | |
| Applicable Screw Specifications | M0.8-M1.7（When changing the screw specifications, the related components need to be replaced.） | |
| Efficiency | 1.3~1.8 seconds / 2 nails | 1.0-1.3 seconds / 2 nails |
| Total power | ＜1.2KW | ＜1.4KW |
| Control method | Motion control card control, joystick operation, touchscreen | |
| Nail removal method | Adsorptive | Inflatable |
| Function | 1. Nail repair function; 2. Production capacity counting; 3. Can store 1,000 types of products, each product can set 2,000 coordinate points; 4. Alarm query function; 5. Camera alignment function; 6. Application program upgrade function; 7. Coordinate point matrix function; 8. Can set torque, number of turns, and depth lock mode; 9. Single coordinate point nailing function, etc. | |
| Adapt product specifications | 1. Maximum range 320mm * 500mm; 2. Customizable models are available for sizes beyond this range | |
