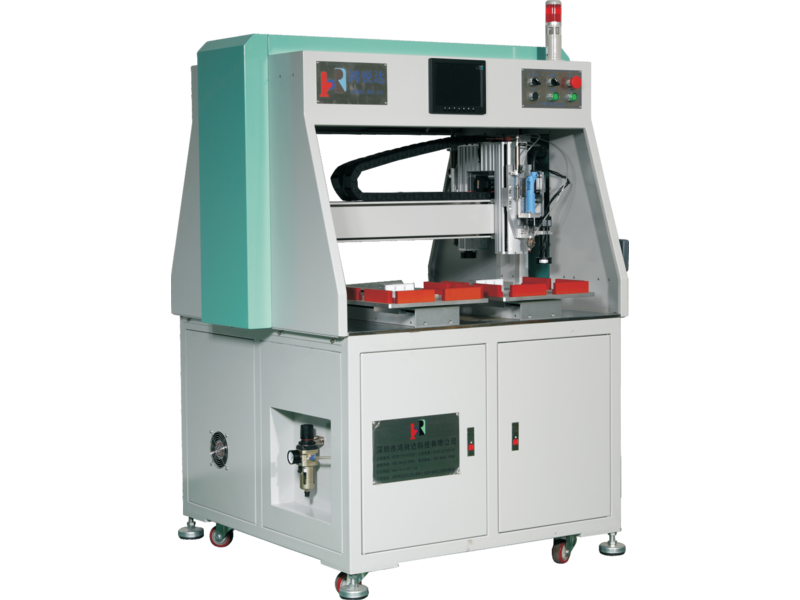

Machine Features:
1. The workbench is divided into four workstations: front left, rear left, front right, and rear right. The front electric screwdriver can fasten screws at the front left and front right workstations, while the rear electric screwdriver can fasten screws at the rear left and rear right workstations. During screw fastening, both electric screwdrivers can operate simultaneously without interference, resulting in high fastening efficiency;
2. Equipped with a vision system, making alignment simple and accurate;
3. Uses adjustable fixtures, suitable for LED modules of various sizes, ideal for large-scale production;
4. Operated with a handle, simple to use. After loading materials on one side, simply press the corresponding start button, and the machine will complete the fastening operation on that side. When multiple machines are arranged side by side, one person can operate several machines simultaneously, greatly saving labor.
| Technical Specifications | ||
| Name | Full-stroke adsorption automatic screw locking machine (with vision and cover) | Full-stroke air-blowing automatic screw locking machine (with vision system and cover) |
| Model | HRD-2LQX6-EZ/S | HRD-2LQC6-EZ/S |
| Dimensions (Length × Width × Height) | 1180mm×1050mm×1750mm | 1180mm×1050mm×1750mm |
| Weight | 400kg | 410kg |
| Power supply | AC220V,50HZ | |
| Working air pressure | 0.55±0.1MPa | |
| Applicable screw specifications | M2.0-M1.7（When changing the screw specifications, the related components need to be replaced.） | |
| Efficiency | 1.8~2.2 seconds / 2 nails | 1.4-1.6 seconds / 2 nails |
| Total power | ＜1.5KW | ＜1.8KW |
| Control method | Motion control card controls joystick operation | |
| Nail removal method | Adsorptive | Inflatable |
| Function | 1. Repair nail function; 2. Production capacity counting; 3. Can store 1000 product programs, each product can set 2000 coordinate points; 4. Alarm query function; 5. Pause memory function; 6. Application program upgrade function; 7. Coordinate point matrix function; 8. Coordinate point segmented nailing function; 9. Dry run test function; 10. Single coordinate point nailing function, etc. | |
| Suitable range | 1. Maximum range 320mm*320mm; 2. Customizable models available for sizes beyond this range | |
