Control Valve, also known as regulating valve, is a key device in industrial automation process control for regulating parameters such as medium flow, pressure, temperature, and liquid level, widely used in chemical, power, metallurgical, and other fields [1]. It automatically adjusts its opening by receiving control system signals to achieve precise control of process parameters. The device consists of an actuator and a valve body, with driving methods including pneumatic diaphragm type, cylinder type, etc. Special working conditions have led to the development of lined fluorine, self-operated, and other specialized types.
Hotline: 0755-23170120
Machine Features
1.The workspace is divided into left and right parts, feeding materials to the back end via a conveyor belt, then discharging them onto the production line. Two electric screwdrivers are used simultaneously for front and rear fastening, achieving high fastening efficiency.；
2. Uses a clamping lifting unit, suitable for LED modules of various sizes；
3. The width of the conveyor track can be automatically adjusted；
4. Camera-assisted point alignment, high efficiency；
5. Can lock two boards at the same time, or lock one large board together；
6. Can be connected in series or parallel layout, flexible and versatile。
| Technical Specifications | ||

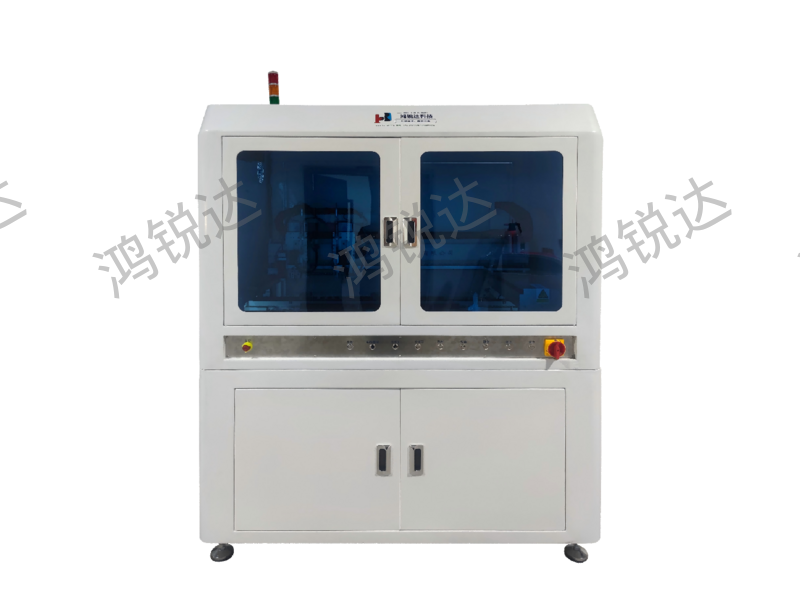

| Name | Online air-blowing automatic screw machine (2 batches, left and right) | Online blow-type automatic screw locking machine (two batches: front and back) |
| Model | HRD-2LXC6-C/ZXS | HRD-2LLMC5-B/ZXS |
| Dimensions (Length × Width × Height) | 1330mm×1450mm×1500mm | 1500mm×1100mm×1750mm |
| Weight | 420Kg | 350Kg |
| Power supply | AC220V，50HZ | |
| Working air pressure | 0.55±0.1 MPa | |
| Applicable screw specifications | M1.0-M2.0（When changing the screw specification, the relevant parts need to be replaced) M1.0-M2.0 (when changing the screw specification, the relevant parts need to be replaced)） | |
| Efficiency | 1.1-1.5 seconds / 2 nails | 1.1-1.5 seconds / 2 nails |
| Total power | ＜2.3KW | ＜1.5KW |
| Nail removal method | Inflatable | |
| Function | 1. Missing nail detection; 2. Production counting; 3. USB import and storage of coordinate files function, can store 20 types of products, each product can set 200 coordinate points; 4. Alarm record query function; 5. Pause memory function, etc. | |
| Suitable range | 1. Maximum range 320mm * 500mm; 2. Customizable models are available for sizes beyond this range | |
