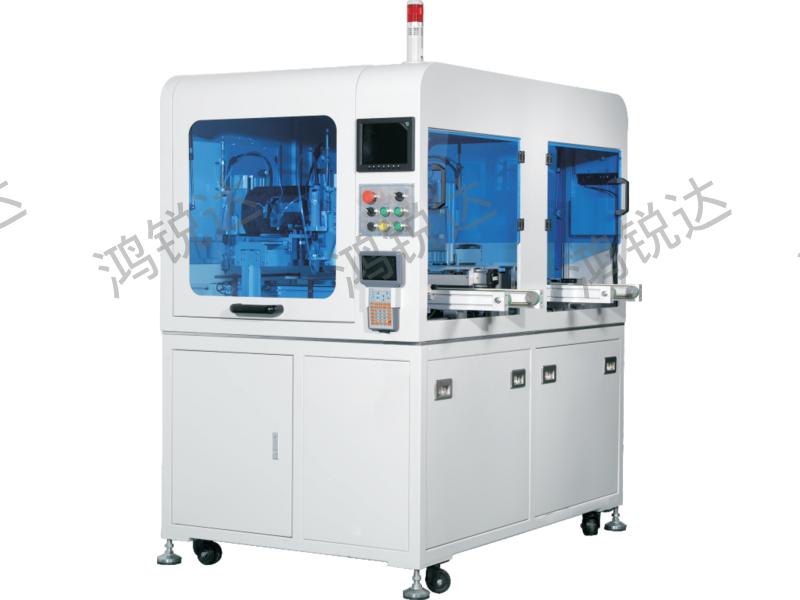

Machine Features
1 The workbench is divided into left and right parts. Both sides are fed from the front end, conveyed to the rear end by a conveyor belt, and then discharged onto the production line. Four electric screwdrivers are used simultaneously for fastening, resulting in high fastening efficiency.；
2. Using an adjustable fixture, suitable for modules of various sizes；
3. Control buttons are set on both the left and right sides. After loading is completed, press the corresponding side's start button to complete the locking operation on that side. The locking on both sides does not interfere with each other, making it highly operable.；
4. The control section uses a motion control card and a hand-held controller structure, making it simple to operate and stable in performance.。
| Technical Specifications | |
| Name | Online Automatic Screw Locking Machine (Front and Rear 4 Batches) |
| Model | HRD-4LLMC8-B/ZXS |
| Electric screwdriver distribution method | Front and back juxtaposition |
| 1500mm*1600mm*1815mm | |
| Weight | 460Kg |
| Power supply | AC220V,50HZ |
| Working air pressure | 0.55±0.1 MPa |
| Applicable Screw Specifications | M1.0-M2.0(When changing the screw specifications, the related components need to be replaced.） |
| Efficiency | 1.4-1.6 seconds/4 screws |
| Total power | ＜3.5KW |
| Nail removal method | Blow-off type |
| Function | 1. Missed nail detection; 2. Production capacity counting function; 3. USB import and storage of coordinate file function, can store 20 types of products, each product can set 200 coordinate points; 4. Alarm record query function; 5. Pause memory function, etc. |
| Applicable range of functions | 1. Maximum range 320mm*320mm; 2. Customizable models available for sizes beyond this range |
