1、Technical Specifications：

2、Introduction to the Basic Functions of the Equipment：

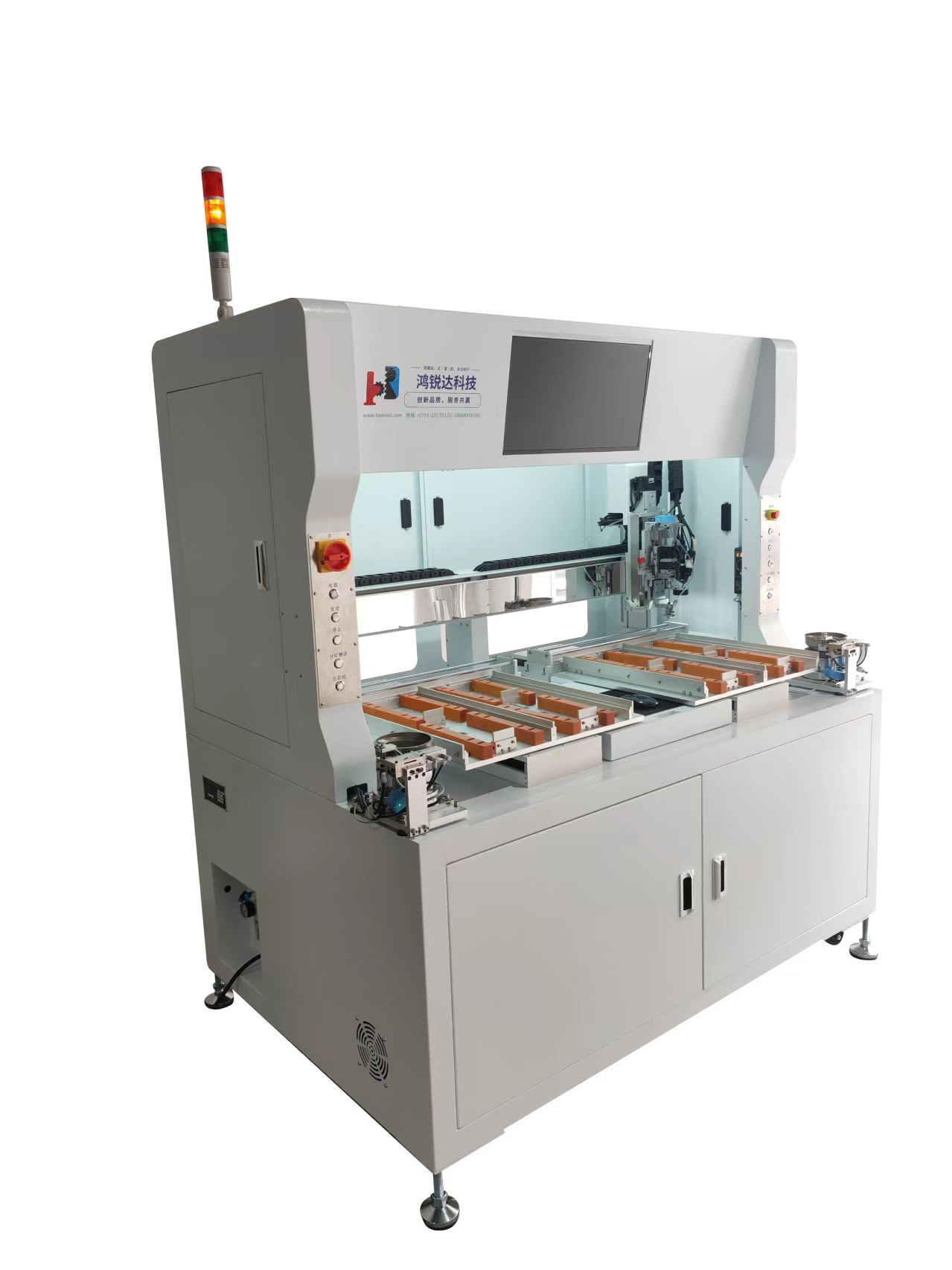

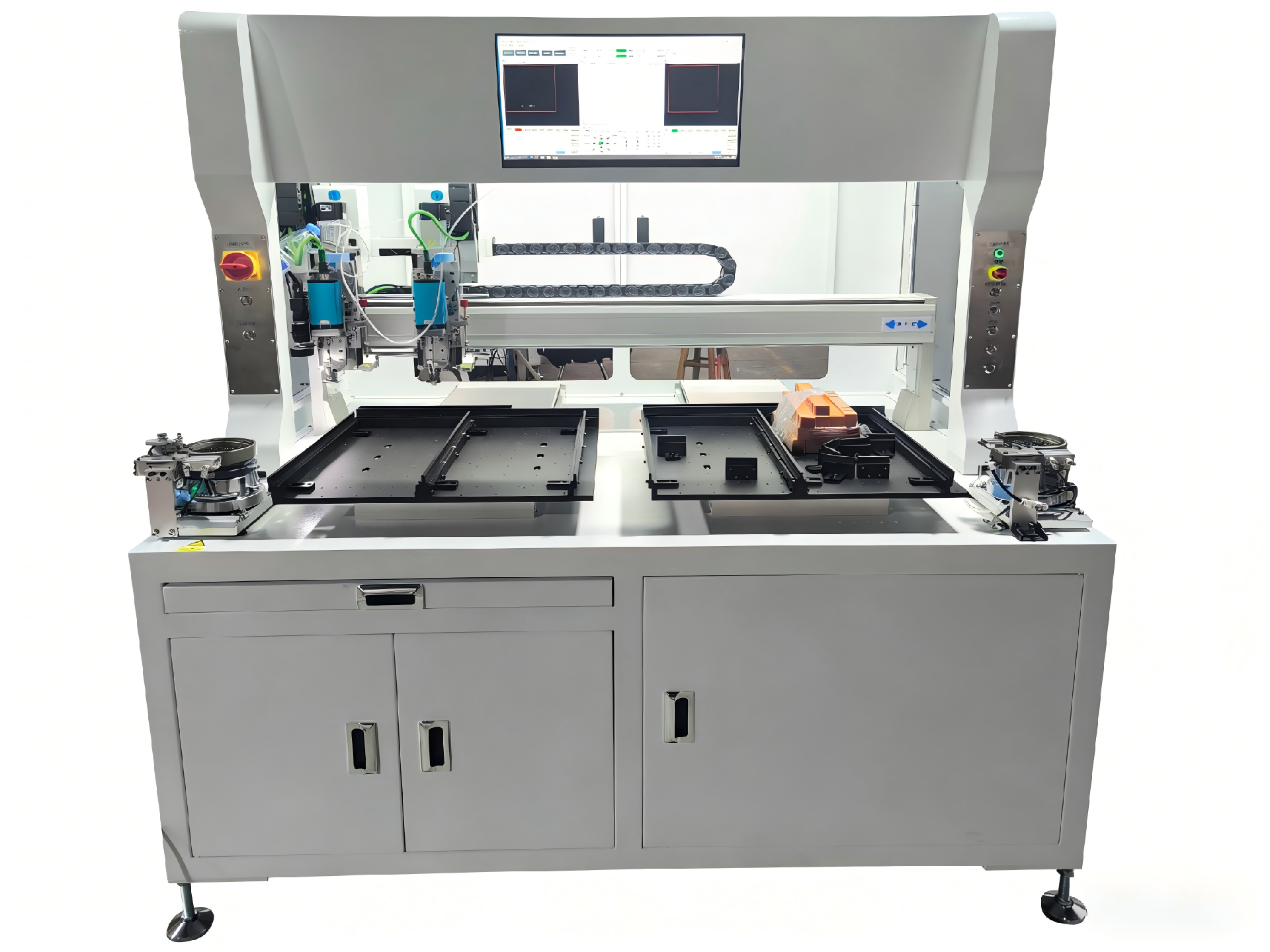

• Using dual Y dual-head locking, the fixture can accommodate four 250×250 modules on one side, two 250×500 modules, and one 500×500 module.

• Two Z-axes are controlled independently, with each side operating separately. It can accommodate different screw specifications on each side, or screw the bottom case on one side and the cover on the other, or handle two products with different specifications.。

• If a defect occurs, for example: if a screw is not properly tightened, the machine will automatically stop and an alarm will indicate 'stripped thread', requiring manual removal. You can choose either manual screw correction or automatic screw re-tightening by the machine;

• The program has a part-ejecting position. When a jam occurs, the Z-axis will automatically move above the ejector box to blow the nails until the feeding returns to normal, then automatically go back to continue fastening. If the nails cannot be replenished multiple times, the system will alarm to indicate a feeding abnormality.

• CCD can achieve MARK point positioning, automatic coordinate searching, first shoot then lock, and shoot while locking functions.

• Program storage: expanded to 1000 entries;

• The electric screwdriver is a servo electric screwdriver, capable of setting multiple speed levels and multiple torque levels, improving fastening efficiency and enhancing fastening results. The display shows real-time parameters such as fastening torque and time, as well as the judgment of fastening results, and can also display in real-time which screw is being fastened through image pixels.

• Equipped with 2 sets of precision vibration plate feeders, each Z-axis independently supplies nails, improving efficiency and stability.

• A set of CCD cameras is installed on both the left and right sides, with the lock parameters, coordinates, and alarm information on each side displayed independently in separate sections.。
