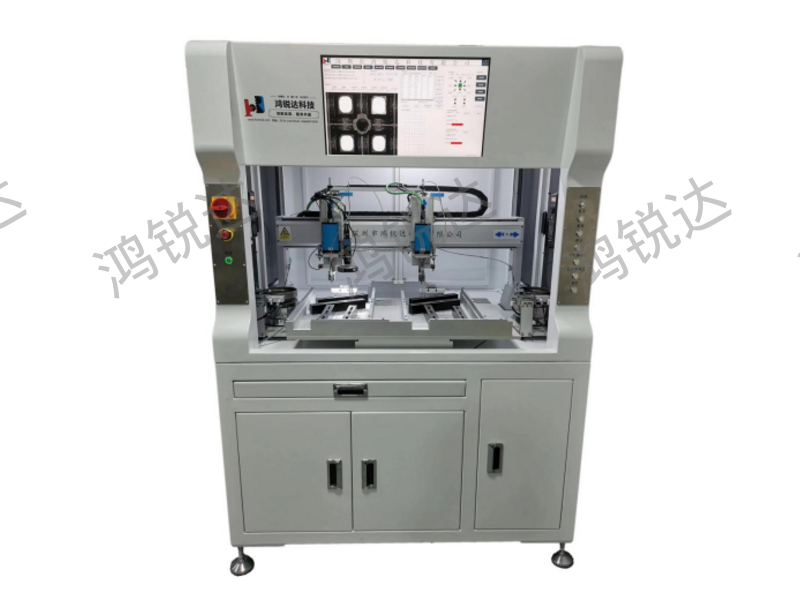

Vision screw machine, CCD
Hotline: 0755-23170120
Machine Features
1、Double-head single station, two electric screwdrivers tighten simultaneously；
2、Configure the industrial computer and CCD camera to achieve various functions such as mark point locking, photo-before-locking, while-photographing locking, and single-head locking;
3、The spacing between the two heads is adjustable, allowing both heads to lock onto the same board.
| Technical Specifications | |
| Name | Vertical Dual-Head Automatic Screw Locking Machine (with CCD) |
| Model | HRD-2PLGC4-BZ/SS |
| Dimensions (Length × Width × Height) | 1330mm×1200mm×1800mm |
| Control method | Industrial PC Motion Control Card |
| Weight | about450Kg |
| Adjustment range | 110-350mm |
| Power supply | AC220V,50HZ |
| Valid itinerary | 400*520*100mm |
| Locking pin efficiency | Average 1.0-1.3 seconds / 400*520*100mm Two screws |
| Total power | Less than or equal to 1.6KW |
| Adapt product specifications | 1. Two sheets of 320mm*320mm or one sheet of 250mm*500mm; 2. Customizable beyond this range |
