Location: Home >> Products >> Dispensing & Soldering Equipment >> Module Drying System

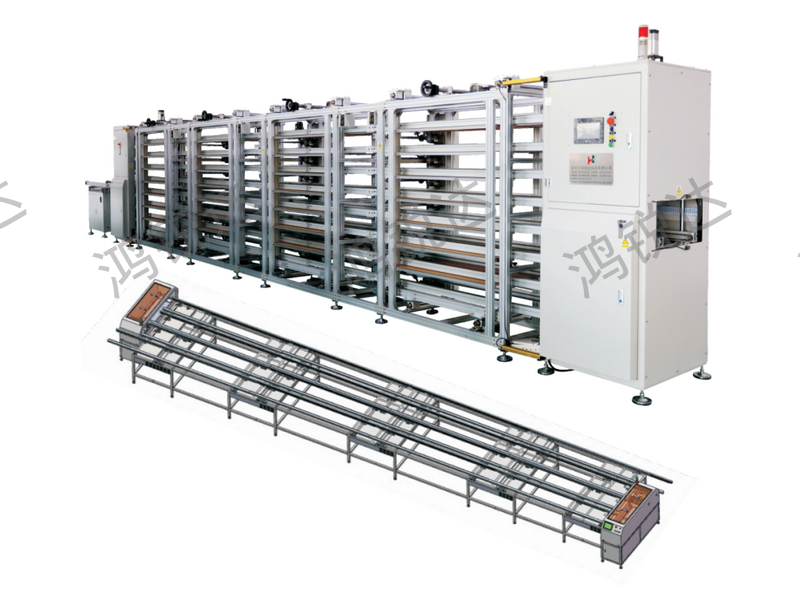

Module Automatic Drying System

  • Model: HRD-L48/8-B
  • Material:
  • Size: 7415mmx770mmx2100mm
  • Voltage:

Name Module Automatic Drying System Module Automatic Adjustable Drying System Flat Drying System Model HRD-L48/8-B HRD-L410/8-D HRD-P44/12N Dimensions (L×W×H) 7415mm x 770mm x 2100mm 7415mm x 770mm x 2100mm 20000mm x 2160mm x 1300mm Control Mode Touch Screen Touch Screen + Speed Controller Touch Screen + Speed Controller Weight Approx. 1470Kg Approx. 1850Kg Approx. 2150Kg Adjustment Mode 6m 10-layer Manual Adjustment Width 8m 10-layer Overall Automatic Adjustment

Contact Us

Hotline: 0755-23170120

Product Description
  • Working air pressure
    Technical Specifications
    NameModule Automatic Drying SystemModule Automatic Drying SystemFlat drying system
    ModelHRD-L48/8-BHRD-L410/8-DHRD-P44/12N
    Dimensions (Length × Width × Height)7415mmx770mmx2100mm7415mmx770mmx2100mm20000mmx2160mmx1300mm
    Control methodTouchscreenTouch Screen Speed ControllerTouch Screen Speed Controller
    Weightabout1470Kgabout1850Kgabout2150Kg
    Adjustment method6 meters 10 layers manual adjustable width8 meters 10-story overall automatic width adjustmentAdjust width for 1 group 3 columns
    Adjustment range150-330mm
    Power supplyAC220V，50HZ
    0.55±0.1 MPa
    Transfer efficiency500 sheets/hour500 sheets/hour400 sheets/hour
    Total length when dried60m (standard, can also be custom-made)80m (standard, can also be custom-made)60m (standard, can also be custom-made)
    Total power<3.3KW<4.5KW<2.73KW
    Transmission MethodServo motor transfer Single-side roller chain conveyorServo motor transfer Single-side roller chain conveyorClosed-loop motor transfer Single-side roller chain conveyor
    Function1. Automatic module pick-and-place function; 2. Function for transferring multiple or single modules; 3. Self-service drying time setting function; 4. Anti-pinch board and hand protection function; 5. Power-off and pause memory function; 6. Power-off brake protection function; 7. Production capacity memory function; 8. Ability to disable individual drying layers; 9. Manual confirmation of drying layer pick-and-place function; 10. Convenient real-time inspection of each layer's drying and glue flow condition (vertical inspection height not exceeding 1.7 meters); 11. Alarm query function
    Suitable rangeAny outdoor module, with maximum dimensions of 320*500mm
