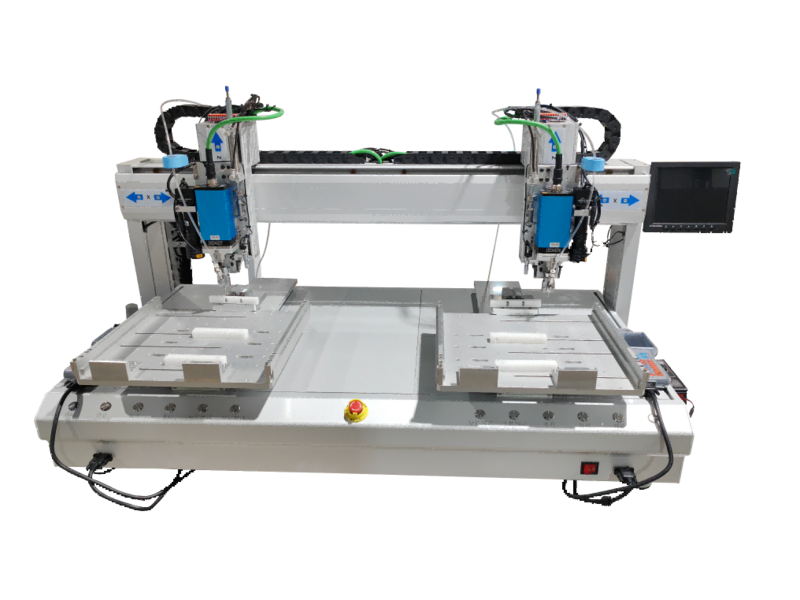

Desktop six-axis air-blow screw machine

  • Model:
  • Material:
  • Size:
  • Voltage:

Equipment Parameters Screw Specifications M0.8-M2.0 Screw Feeding Method Blow Feeding (Vibratory Bowl Feeding) Number of Axes 6 Axes Positioning Accuracy ±0.03mm Repeatability ±0.03mm Simultaneous Screwdriver Count 2 (Servo Screwdrivers) Dimensions (L*W*H) 1200*700*760mm Weight Approx. 120kg Control Method Motion Control Card + Handheld Pendant Power Supply AC220V, 50Hz Working Air Pressure 0.55-0.65MPa

Contact Us

Hotline: 0755-23170120

Product Description
  • Device parameters
    Screw specifications

    M0.8-M2.0

    Screw implantation method

    Blow-feed type (vibratory bowl feeding)）

    Number of axles

    6-axis

    Positioning accuracy

    ±0.03mm

    Repeatability

    ±0.03mm

    Simultaneously lock the number of electric screwdrivers

    2 units (servo electric screwdriver)

    Dimensions (L*W*H)

    1200*700*760mm

    Weight

    About120kg

    Control method

    Motion Control Card Joystick

    Power supply

    AC220V，50Hz

    Working air pressure

    0.55-0.65MPa
