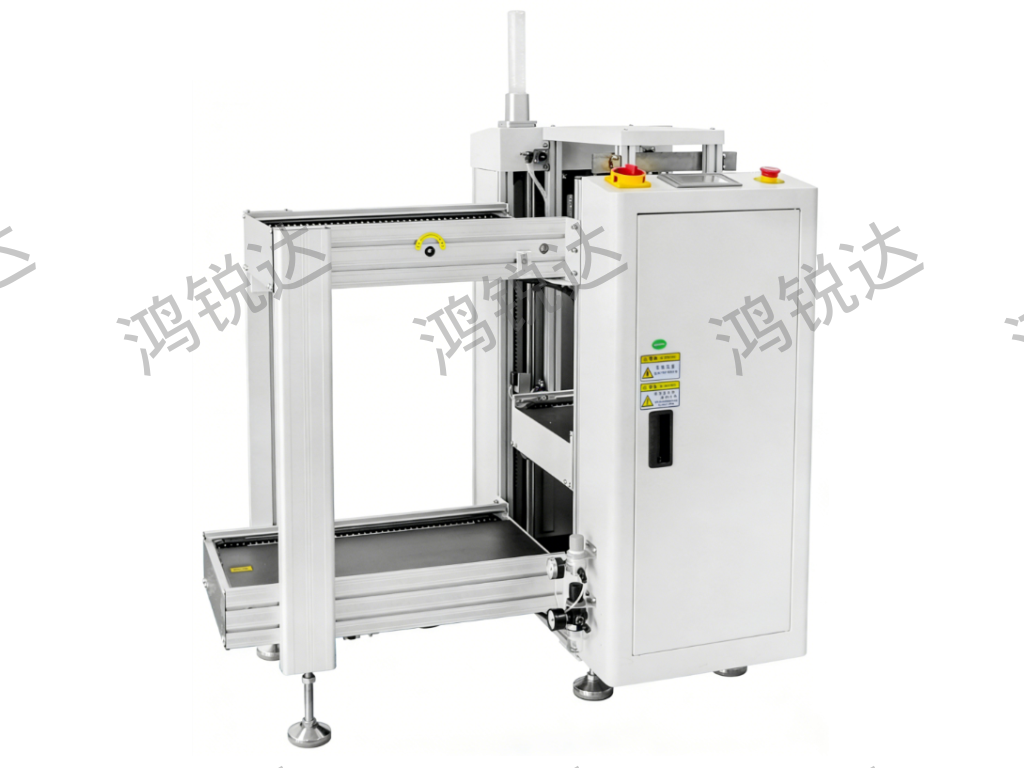

1. Features: Automatic loading: Automatically removes PCBs one by one from the magazine and feeds them into the production line conveyor track without manual intervention. PLC control system with touchscreen operation: User-friendly HMI for easy operation. Multiple pitch options: Supports 10/20/30/40/50mm pitch settings to accommodate PCBs of different thicknesses. SMEMA standard interface: Complies with SMEMA communication standards for seamless integration with upstream and downstream equipment, enabling inline automation.
Hotline: 0755-23170120
1.Automatic feeding: Automatically takes PCBs from the rack one by one and sends them to the production line conveyor track, no manual intervention required.
2. PLC control system with touchscreen operation: User-friendly interface, easy to operate.
3. Multiple pitch selection: Supports 10/20/30/40/50mm pitch settings, suitable for PCBs of different thicknesses.
4. SMEMA standard interface: Complies with SMEMA communication standards, can seamlessly connect with upstream and downstream equipment to achieve line automation.
5. Automatic alarm system: Automatically alarms in case of board missing or board jamming, ensuring production safety.
6. Wide-range automatic adjustment: The guide rail width can be automatically adjusted according to the PCB size.
7. Standard conveyor height: Conveyor height is 900±20mm, complying with SMT industry standards.
8. Optional conveyor direction: Left in, right out.
Parameter Name | Parameter Value (Reference) |
Applicable PCB Size | 150×150mm ~ 340×270mm |
PCB Thickness | 0.5mm ~ 5.0mm |
Transmission height | 900 ± 20mm |
Transmission Direction | Left → Right |
Boarding efficiency | About 6~10 seconds per piece |
Material frame size capacity | Material frame W355 × L320 × H565mm, one on top and two below. |
Spacing selection | 10 / 20 / 30 / 40 / 50mm |
Belt width | 4mm，ESD anti-static belt |
Power and Power Consumption | AC 220V ±10V，50/60Hz，about100~180W |
Air Source and Air Consumption | 0.6MPa，Gas consumption 5L/min, trachea 6mm |
Overall dimensions (for reference) | about L1350 × W845 × H1500mm |
Overall machine weight | about 170kg |
Communication interface | SMEMA Standard Signal Interface |
