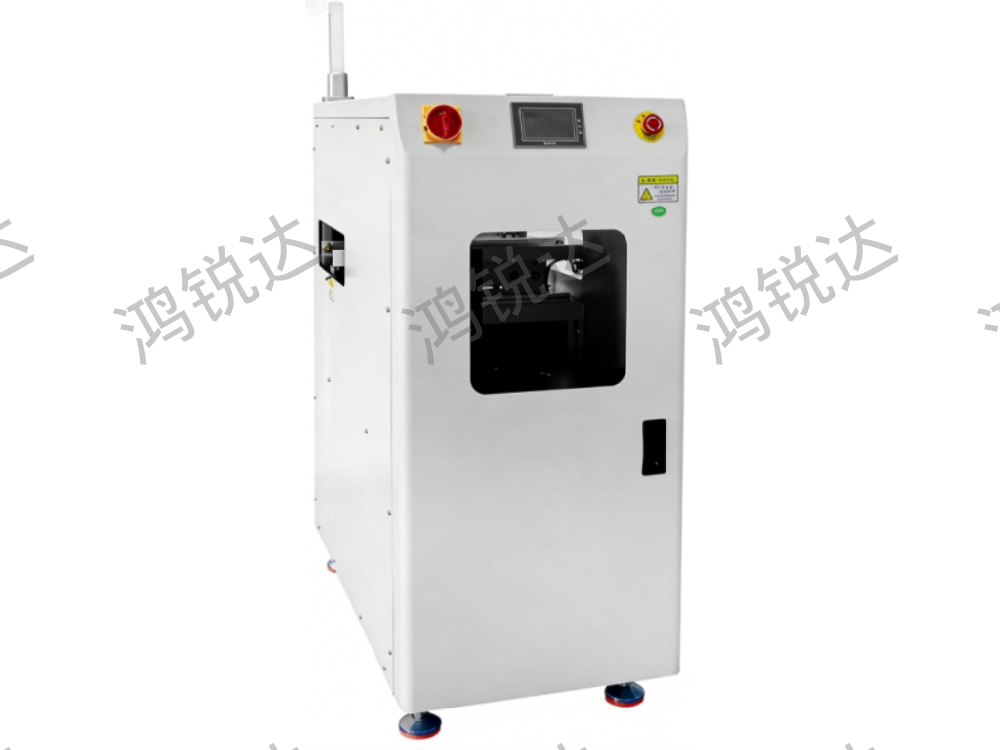

1. Functional Features: PLC system, touch screen operation. Enclosed design for maximum safety protection. Top safety cover can be opened for easy maintenance. Flexible suction cup design for easy adjustment of suction cup positions. Stable and balanced width adjustment device (automatic width adjustment via stepper motor). Vertical-lift suction plate loading with high loading efficiency and paper separator function. Compatible with SMEMA interface. 2. Technical Parameters Parameter Name
Hotline: 0755-23170120
l PLC system, touch screen operation.
l Closed design ensures maximum safety protection.
l The top safety cover can be opened, making maintenance convenient.
l Flexible suction cup design, convenient for adjusting the suction cup position.
lStable and balanced width adjustment device (automatic width adjustment by stepper motor).
l Direct lifting suction board for boarding, high boarding efficiency, with paper separation function.
l Compatible with SMEMA interface.
Parameter Name | Parameter Value (Reference) |
Applicable PCB Size | 150×150mm ~ 340×270mm |
PCB Thickness | 0.5mm ~ 5.0mm |
Board height and weight | 200mm，30kg。 |
Transmission height | 900 ± 20mm |
Transmission Direction | Left → Right |
Listing cycle | About 8~15 seconds per piece |
Belt width | 4mm，ESDAnti-static belt |
Vacuum pressure | Adjustable, approximately -0.05 ~ -0.08 MPa |
Air source and air consumption | 0.6MPa, 6mm air pipe, air consumption 40L/min. |
Power consumption | AC 220V ±10V，50/60Hz，about280W |
Overall dimensions (for reference) | about L600 × W1600 × H1500mm |
Overall machine weight | About159kg |
